IDEA_03_01

FUNNY CHAIR

Thursday 3 July 2014

PROTOTYPE_02

우선 식물의 호흡을 땅의 움직임으로 보여주는 방식을 통해서 보여주고자 하였다. 인간의 폐가 주기적으로 움직이는 것을 식물의 호흡으로 치환함으로서 같은 움직임을 표현하고자 하였다. 호흡이라는 기본적인 생명의 작동 방식을 전기적인 신호의 변화로 연결함으로서 인간과 식물 그리고 그것을 통제하는 컴퓨터와의 새로운 연결을 시도 하였다.
인간이 식물에 대해 가지고 있는 기존 개념 즉 움직임이 없는 생물이라는 개념을 전복하고자 하였다.

First of all, I want to show that breathing of plants is shown through the movement of ground. I substitute the breathing of plants for movement of lung. By connecting breath
that one necessary to the existence of life and change of electronic signal, I tried to connect with human and plants and computer. Our views on plants



// The uncanny (German: Das Unheimliche, "the opposite of what is familiar") is a Freudian concept of an instance
where something can be both familiar yet alien at the same time, resulting in a feeling of it being uncomfortably strange.
Because the uncanny is familiar, yet incongruous, it often creates cognitive dissonance within the experiencing subject,
due to the paradoxical nature of being simultaneously attracted to yet repulsed by an object. This cognitive dissonance often leads
to an outright rejection of the object, as one would rather reject than rationalize, as in the uncanny valley effect. //

The subject of this project is interaction between human and plant. My First thought is that Do plants breathe like we human do?
I was amazed after learning that plants breathe and that their breathing is very similar to ours. So I want to show that plants breaths llike human do and reacting to touch of human.


EXPERIMENT_02_04

EXPERIMENT_02_03

SIMULATION

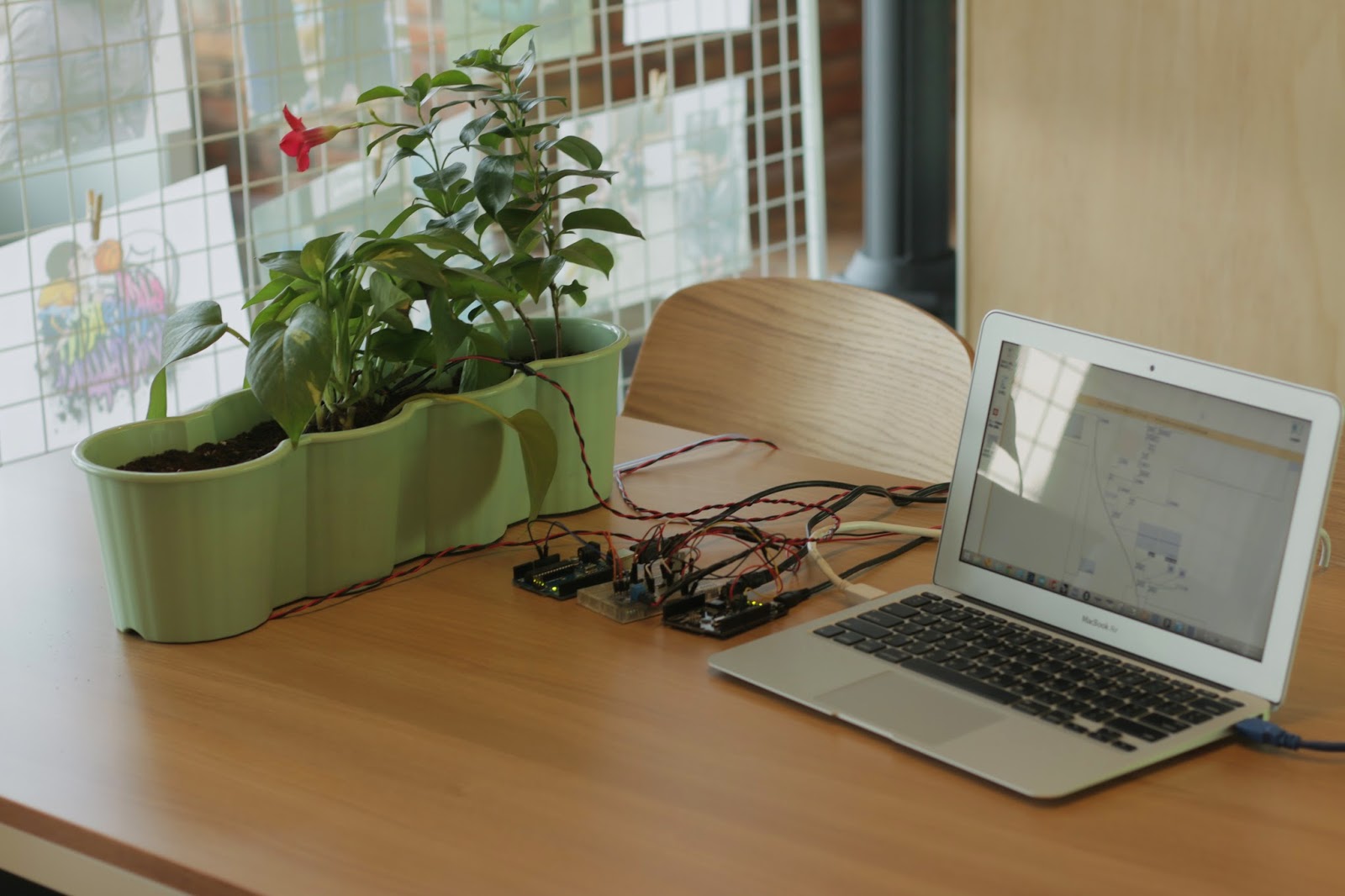

전체적인 시스템을 구성하고 아두이노와 VVVV를 RS232로 연결하여 아두이노를 통한 식물의 전류 신호를 VVVV 에서 제어하였다. VVVV에서 일정 주기의 신호를 에어펌프로 보내어 인간의 호흡과 같은 형태를 만들고자 하였다. 식물의 전류 변화량은 사람이 터치 했을때 식물의 반응을 보여주는 신호로 사용하였다.
영상에서 보여지는 바와 같이 생각보다 큰 기압을 볼 수 있었다.


EXPERIMENT_02_02

TOTAL CIRCUIT

식물의 호흡을 보여주기 위한 인공적인 페를 만들기 위해서 에어펌프를 사용하였다. 그리고 12V 1.2A 에서 작동하며 분당공기량은 4L이고 최대 기압은 200KPA 이다.

에어 펌프와 전류 측정 센서를 구성하였다. 이를 통해 실시간으로 전류의 변화량을 측정하고
이를 사용하여 펌프의 일정한 흐흡을 보여 줄 것이다.







EXPERIMENT_02_01

CURRENT CIRCUIT

식물에 흐르는 미세 전류의 변화량을 측정하기 위해 Adafruit 의 INA219 Current Sensor를 사용하였다. 측정 범위는  +26VDC 이고, 측정 해상도는  ±3.2A 범위에서 0.8mA 이다.

                                                 INA219
                                                 INA219
                                                 CURRENT CIRCUIT
